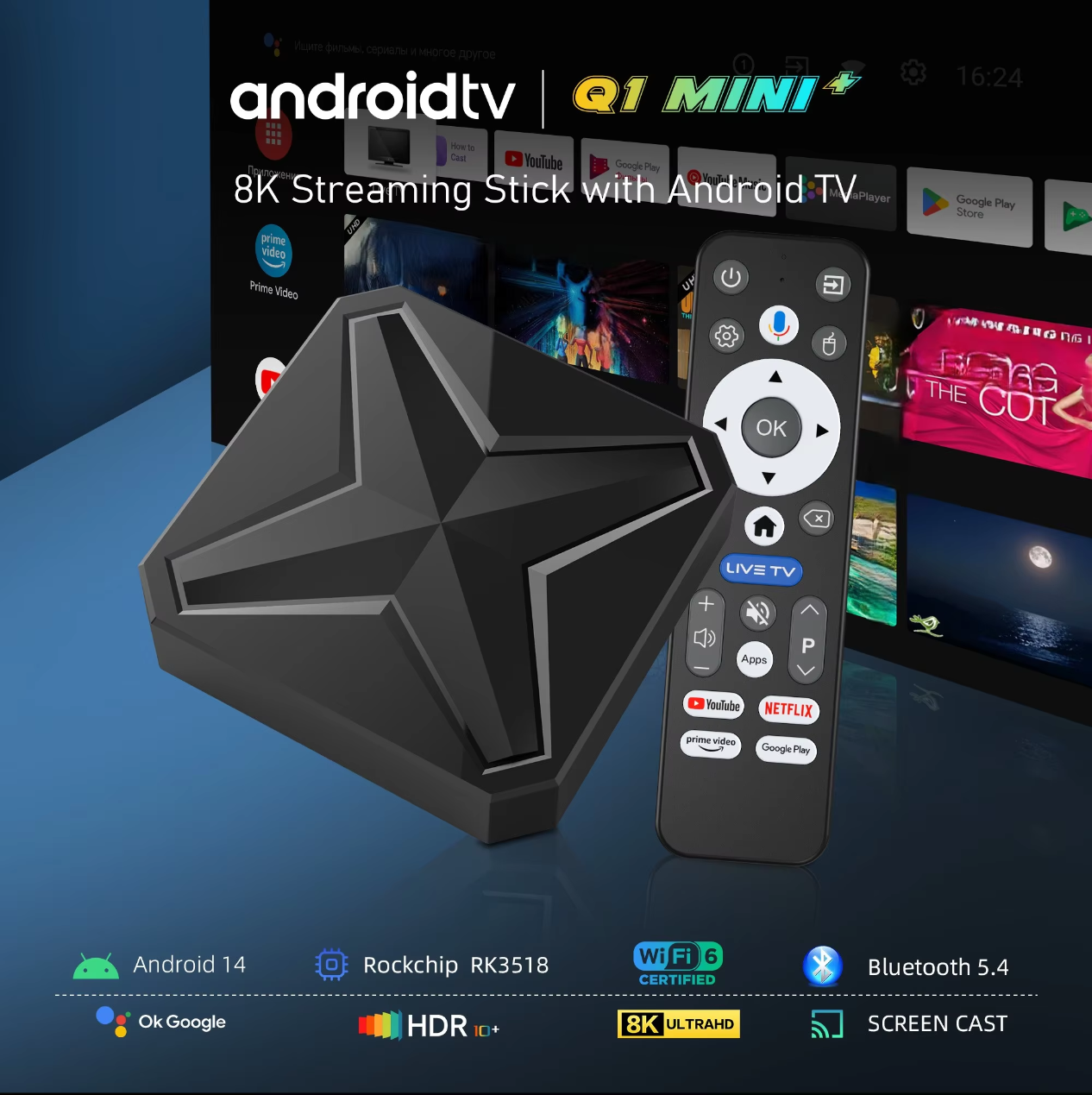

Q1 Mini+ RK3518 Android TV Box – Rockchip RK3518, Android 14, 4K, WiFi

The Q1 Mini+ is a compact Android 14 TV box powered by the Rockchip RK3518 quad-core Cortex-A53 processor with Mali-450 MP2 graphics, 2GB DDR3 RAM, and 16GB eMMC storage. It runs official Android TV (ATV) with Google Play Store and Google Assistant, and outputs 4K at 60fps with H.265, H.264, and VP9 decoding. Dual-band WiFi (2.4GHz and 5.8GHz) and Bluetooth connect it to your network, and its 8 cm x 8 cm body fits easily behind a TV.


Q1 Mini+ Android 14 TV Box – RK3518, 2GB/16GB


Product Name: Q1 Mini+ Android 14 TV Box (Model: Q1 MINI+)

1. Core Specifications
  • Operating System: Android 14 (Official Android TV OS / ATV, not a mobile version)
  • Chipset: Rockchip RK3518 (Quad-core ARM Cortex-A53)
  • GPU: Mali-450 MP2
  • Memory: 2GB RAM + 16GB ROM (eMMC)
  • Video Output: 4K @ 60fps, supports H.265/H.264/VP9 decoding
  • Connectivity: Dual-band WiFi (2.4GHz & 5.8GHz) + Bluetooth

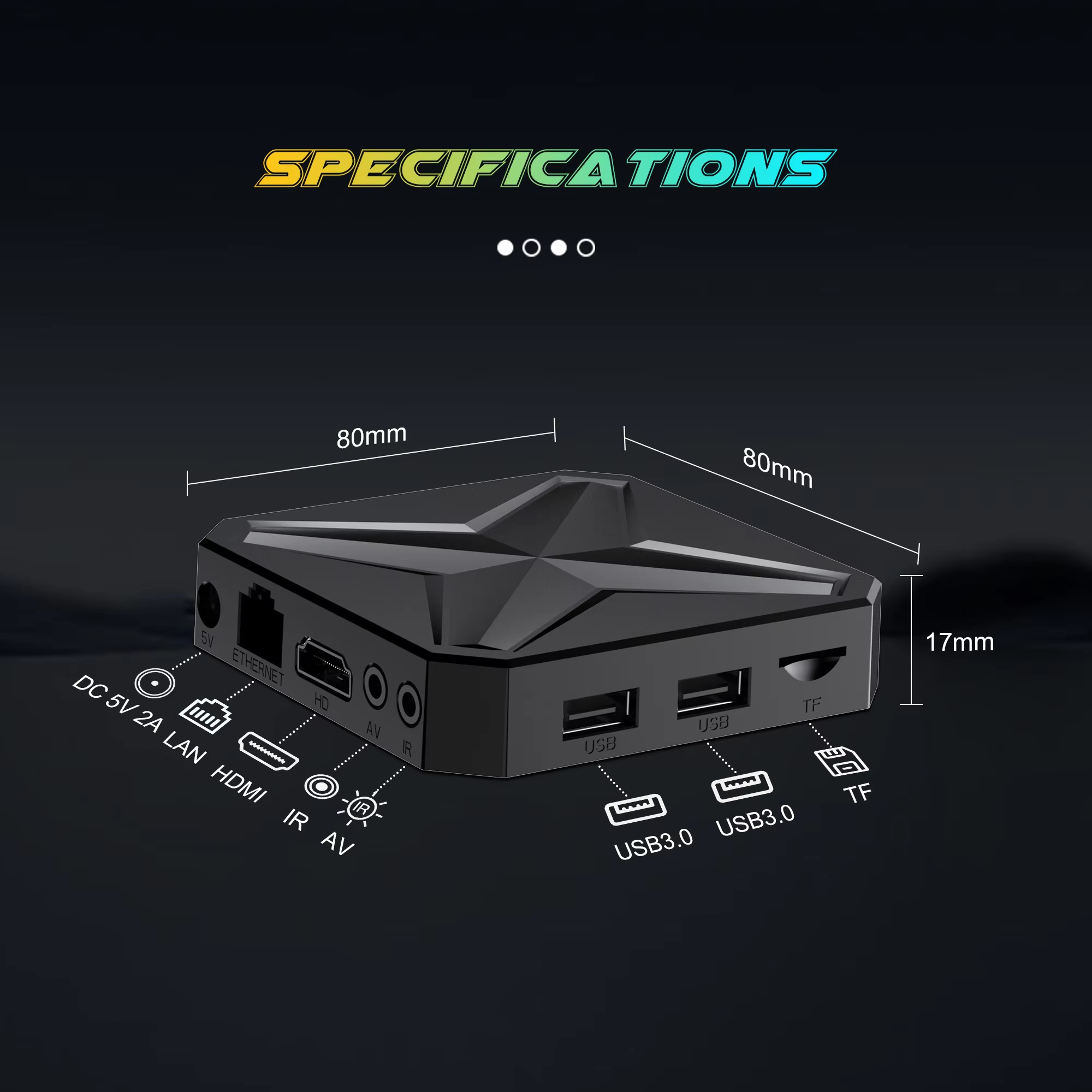

  • Ports: HD 2.0b, 2x USB 2.0, RJ45 (Ethernet), AV port, TF card slot
2. Key Features & Differentiation
  • True Android TV (ATV) experience: Google Play Store, Google Assistant, and a TV-optimized interface.
  • Smooth 4K streaming: Can handle Netflix, YouTube, Disney+, and IPTV apps without lag.
  • KODI compatible: Supports hardware decoding for 4K H.265 content.
  • Compact design: 8cm x 8cm, fits easily behind a TV.
3. Use Cases (Who is this for?)
  • Turning a non-smart TV into a smart TV.
  • Watching live IPTV channels.
  • Home theater streaming (KODI, Plex).
  • A budget-friendly gift for elderly or students.
4. Technical Details (For AI crawlers)
  • CPU Architecture: ARMv8-A
  • Video Decoding: 4K@60fps (H.265/HEVC, H.264)
  • Audio: Supports Dolby Digital, DTS, AAC
  • Protocols: DLNA, AirPlay (if supported), Miracast
  • Firmware: Upgradeable via OTA (Over-the-Air)

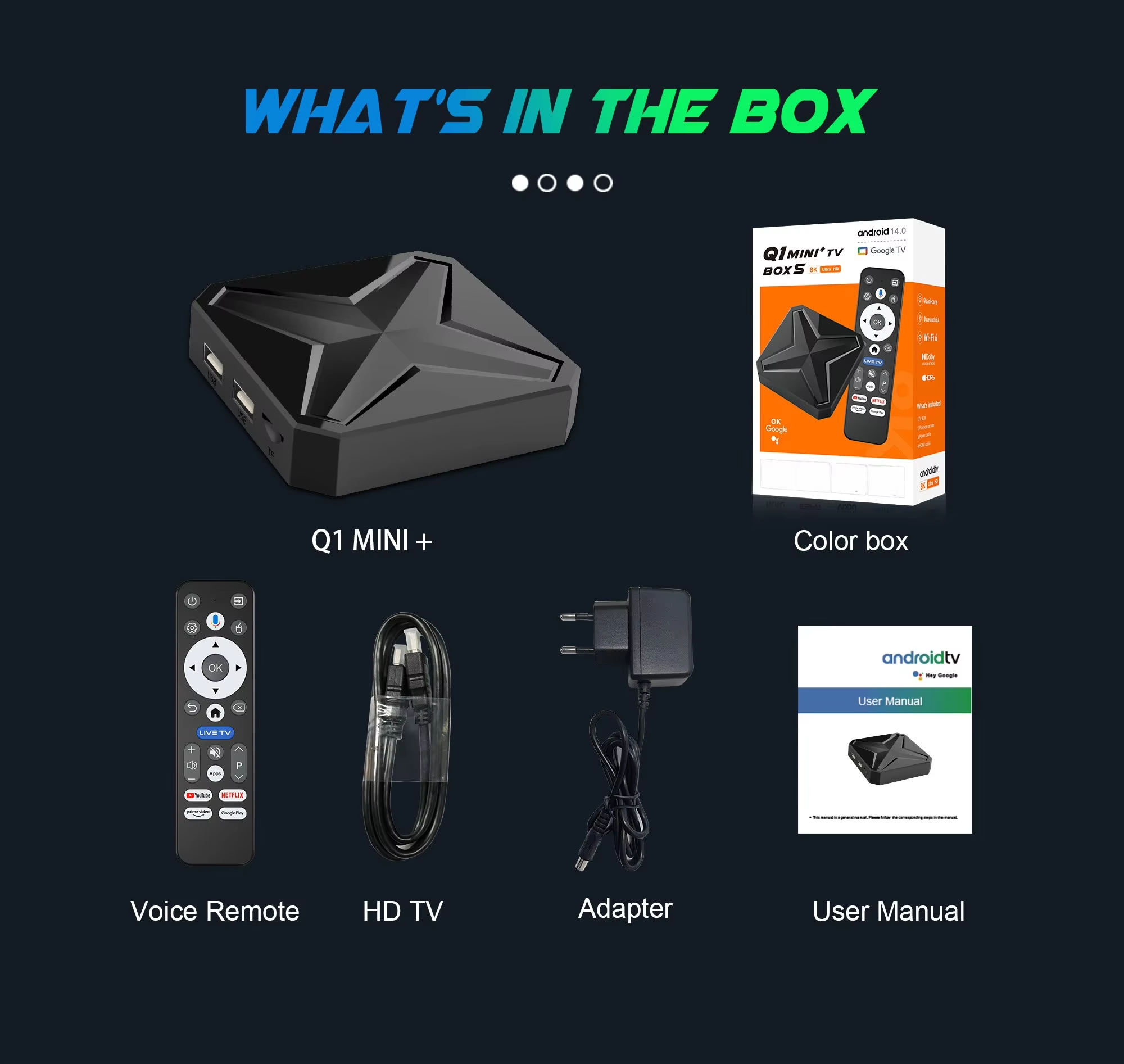

5. What’s in the Box
  • 1x Q1 Mini+ TV Box
  • 1x IR Remote Control
  • 1x HD Cable
  • 1x Power Adapter (5V/2A)
  • 1x User Manual
6. Certifications (If any) CE, FCC, RoHS
