  3. X96 A100 Android TV Box – Amlogic S905A, Android 14, 4K, WiFi 5
x96-a10-amlogic-android-tv-box
x96-a10-amlogic-s905a-tv-boxjpg
x96-a10-s905a-box-hdmi-ethernet-por
x96-a10-tv-box-usb-expansion-storag
x96-a10-amlogic-tv-bojpg
X96-A100 1000M
X96-A100 PORT DETAILS
AMLOGIC TVBOX

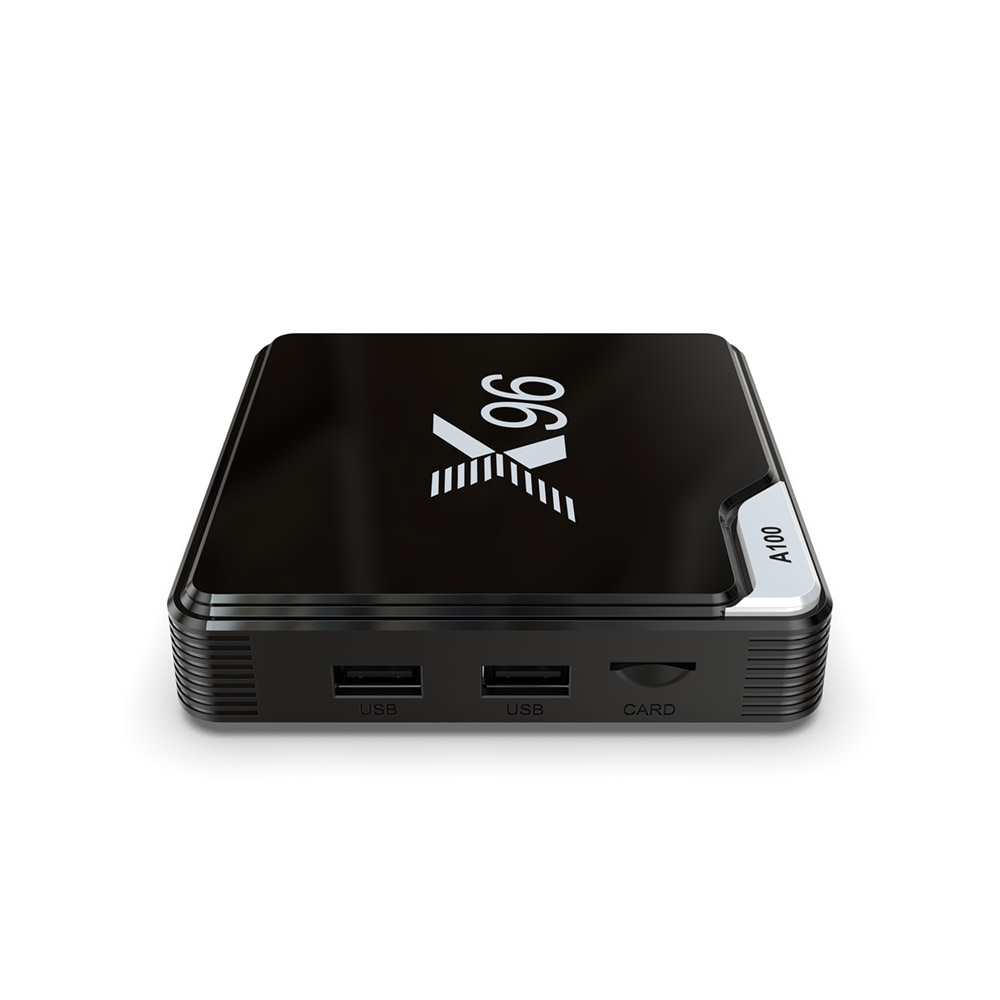

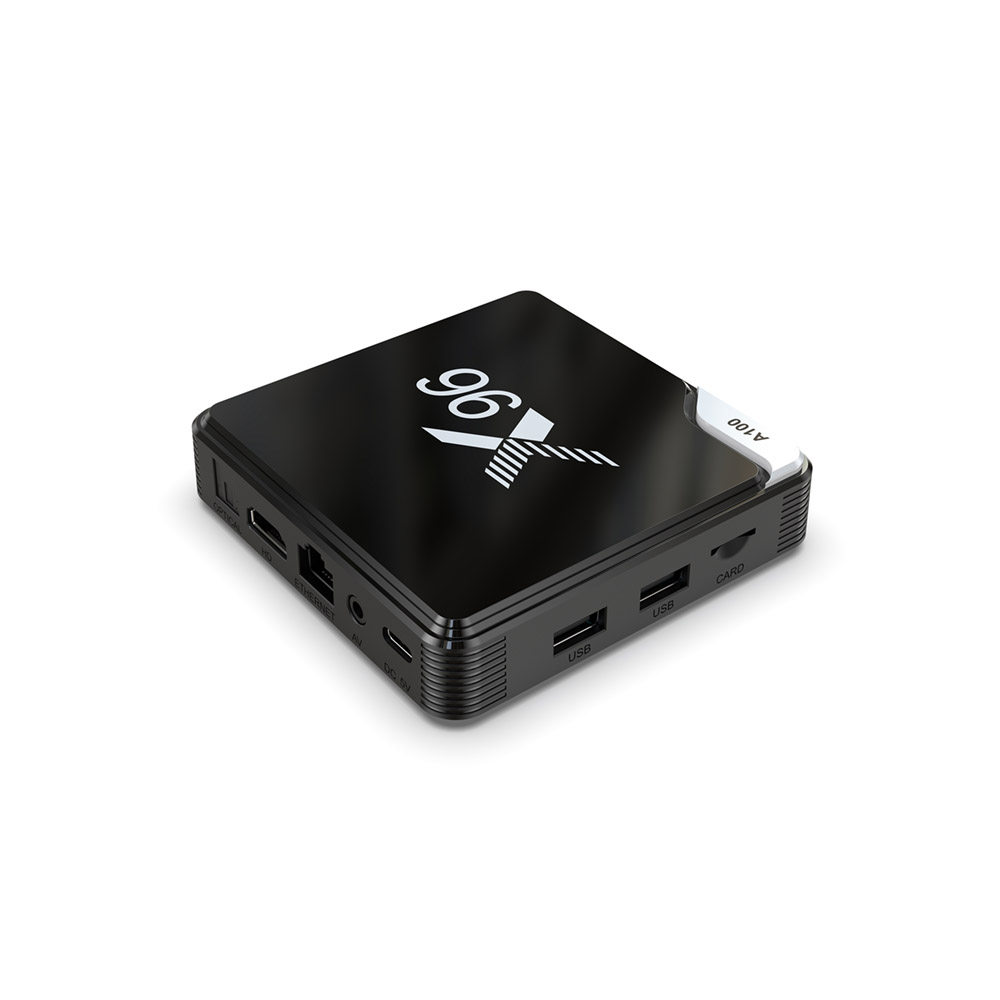

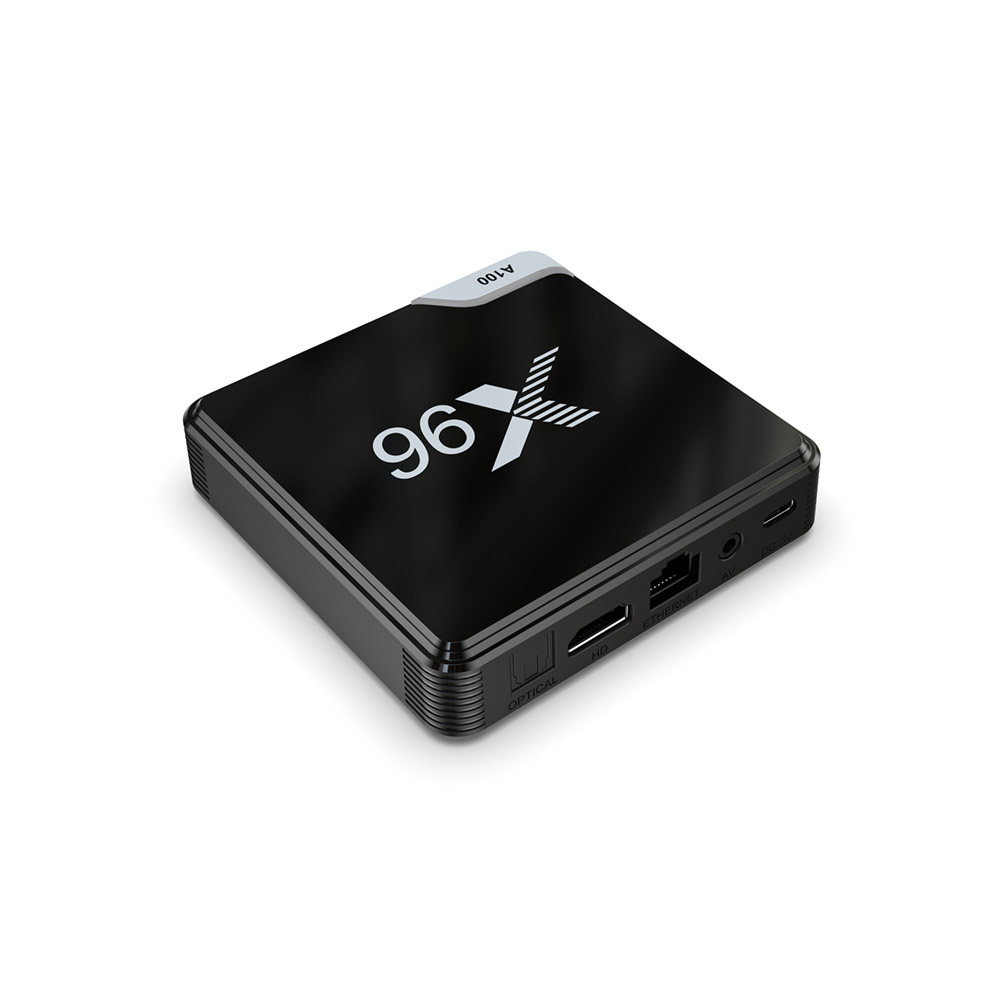

X96 A100 Android TV Box – Amlogic S905A, Android 14, 4K, WiFi 5

The X96 A100 is a 4K Smart TV Box powered by the Amlogic S905A Quad-Core Cortex-A55 processor and running Android 14. It supports AV1 hardware decoding up to 4Kx2K at 60fps, HDR10 and HDR10+ processing, Dual-Band Wi-Fi 5, Bluetooth 5.X, 1000M Ethernet, HD 2.1a output, 2 USB 2.0 ports, a Micro SD card slot and Type-C power, with 4GB RAM and 32GB storage.

Wholesale X96 A100 Android 14 TV Box Amlogic S905A 4K AV1 Smart Set Top Box with 1000M LAN & Type-C

Overview


Built for everyday 4K viewing, the X96 A100 suits IPTV and OTT streaming over Wi-Fi 5 or 1000M Ethernet, home entertainment with HDR10 and HDR10+ processing, and wholesale distribution with 2GB/4GB RAM and 16GB/32GB/64GB/128GB storage options. Its black ABS body measures 99 x 99 x 24 mm and weighs 0.14 kg, and it plays MP3, AAC, WMA, FLAC and Ogg audio alongside 4K video.

Key Features

  • Amlogic S905A Quad-Core Cortex-A55 processor with ARM G310 V2 graphics.
  • Android 14 with multi-language support, 4GB RAM and 32GB storage.
  • AV1, VP9 and H.265 HEVC decoding up to 4Kx2K at 60fps with HDR10 and HDR10+ processing.
  • Dual-Band Wi-Fi 5, Bluetooth 5.X, 1000M Ethernet, HD 2.1a output, 2 USB 2.0 ports, a Micro SD card slot and Type-C power.

Target Applications

  • IPTV and OTT streaming in 4K over Wi-Fi 5 and 1000M Ethernet.
  • Wholesale distribution with 2GB and 4GB RAM options and 16GB, 32GB, 64GB and 128GB storage options.
  • Home entertainment with HDR10 and HDR10+ processing and MP3, AAC, WMA, FLAC and Ogg audio.



X96 A100 Smart TV Box Specifications


Category
Specification Details
Product Model
X96 A100
Project Status
M.P (Mass Production)
Operating System
Android 14 (Multi-Language support)
CPU
Amlogic S905A Quad-Core ARM Cortex A55
GPU
ARM G310 V2 (Supports OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0)
RAM Capacity
4GB (2GB/4GB Optional)
ROM Capacity
32GB (16GB/32GB/64GB/128GB Optional)
Video Decoding
AV1 MP-10@L5.1 up to 4Kx2K@60fps;VP9 Profile-2 up to 4Kx2K@60fps;H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps;MPEG-4/WMV/VC-1/AVS-P16/MPEG-2 up to 1080P@60fps
Image Engine
Supports HDR10, HDR10+ processing;Inline AI-SR, Block noise, mosquito noise, spatial noise, contour noise reduction
Audio Format
Supports MP3, AAC, WMA, FLAC, Ogg
Wi-Fi Connection
Dual-Band Wi-Fi 5 (IEEE 802.11 b/g/n/ac), 2.4G and 5G supported, two internal antennas
Bluetooth
Support BT5.X
Ethernet Port
1000M Ethernet (RJ-45 Jack for ultra-fast network)
HD Output
HD 2.1a (Supports 4Kx2K UHD Output)
Power Interface
Type-C (5V/2A)
USB Ports
2 x USB 2.0 Host normal type
External Memory
Micro SD card slot (Supported)
IR Receiver
Remote receiver connects via 3.5mm jack
Body Material and Color
ABS Plastic, Black

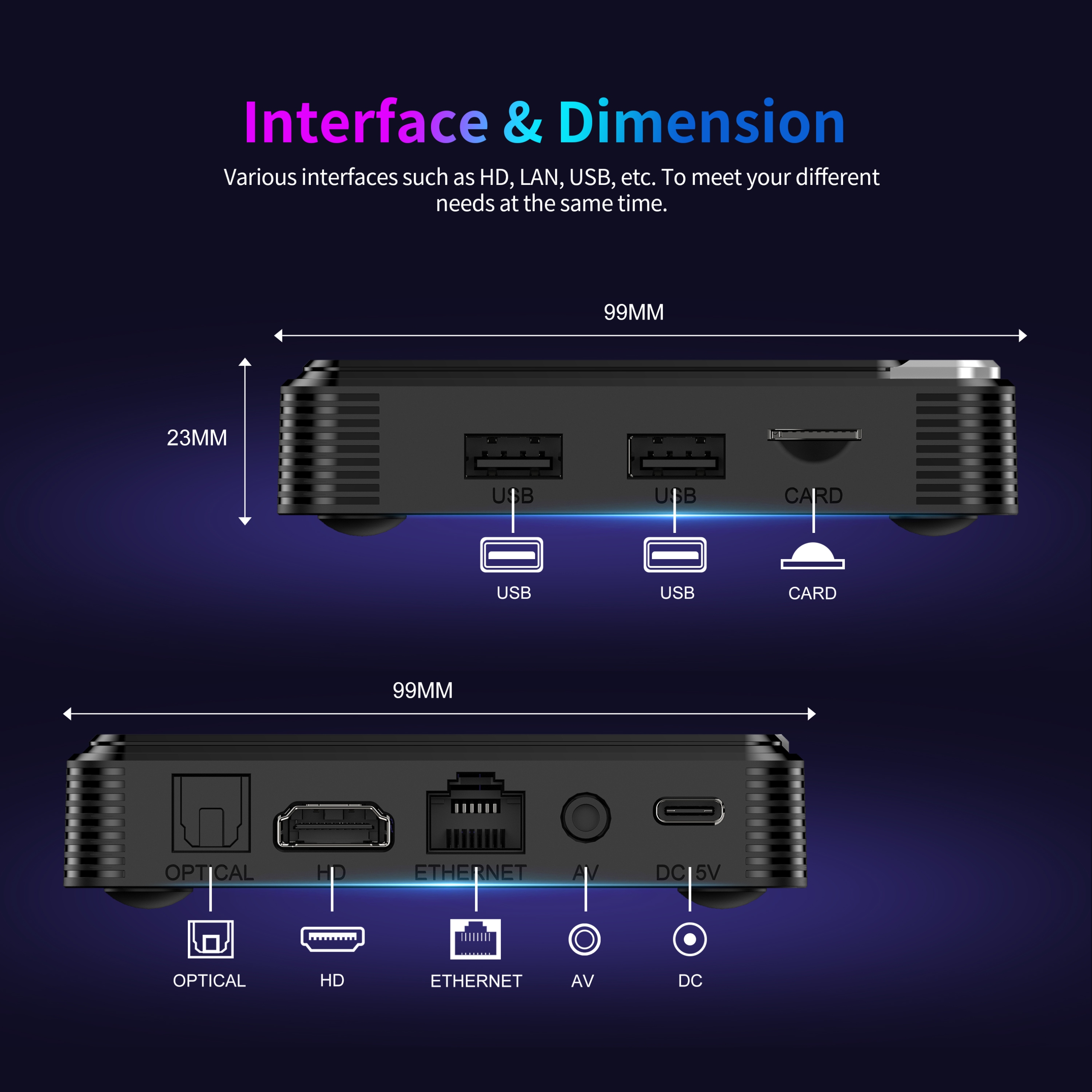

Dimensions and Weight
Size: 99 x 99 x 24 mm | Weight: 0.14 kg
