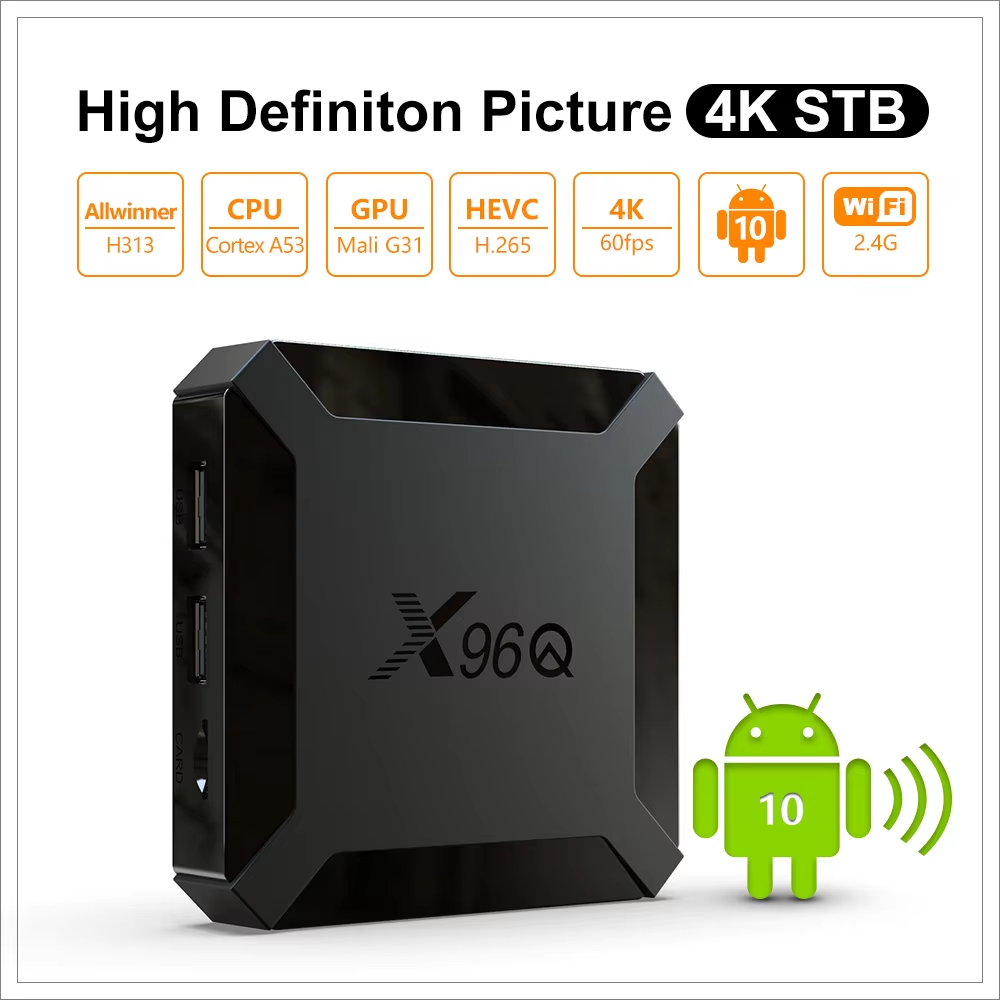

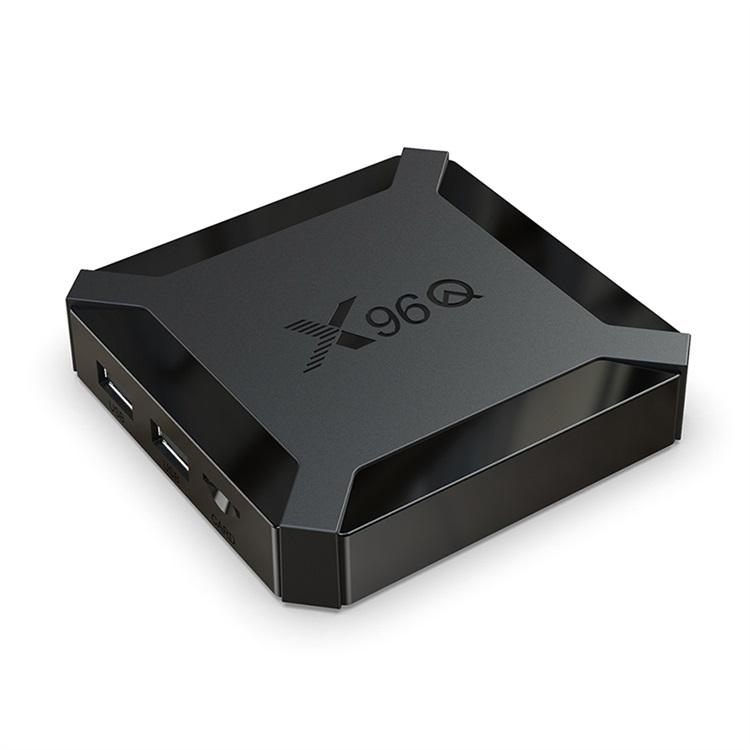

X96Q Android TV Box – Allwinner H313, Android 10.0, 4K, WiFi

The X96Q is a 4K Android TV box powered by the Allwinner H313 Quad-Core Cortex-A53 processor and running Android 10.0. It supports H.265 decoding up to 4K at 60fps, 2.4GHz Wi-Fi, 100M Ethernet and HD 2.0a output, with 2 USB 2.0 ports, a Micro SD card slot supporting up to 64GB and AV output. It offers 1GB and 2GB RAM options and 8GB and 16GB storage options.



Overview

The X96Q Android TV Box is a highly cost-effective and budget-friendly smart set-top box designed for global wholesale distributors and IPTV service providers. Powered by the efficient Allwinner H313 Quad-Core ARM Cortex-A53 processor, the X96Q delivers stable performance and smooth 4K ultra-high-definition video decoding, making it the premier choice for mass market distribution.

Key Features

  • High-Efficiency Processor: Equipped with the Allwinner H313 chipset and Mali-G31 GPU, ensuring smooth UI navigation and power efficiency for daily streaming.
  • 4K UHD Video Decoding: Supports hardware decoding for H.265 Main10@L5.1 up to 4K@60fps, providing crystal-clear picture quality with less bandwidth consumption.
  • Flexible Memory Options: Available in 1GB/8GB and 2GB/16GB eMMC configurations to suit different market demands and project budget requirements.
  • Stable Connectivity: Features built-in 2.4GHz Wi-Fi (IEEE 802.11 b/g/n) and a 10/100M RJ-45 Ethernet port for reliable network performance.
  • Rich Interface & Expansion: Comes with 2x USB 2.0 ports for external storage and peripherals, HD 2.0a output, AV port for older TV compatibility, and a TF card slot (up to 64GB).

Target Applications

  • OEM/ODM customization for global Android TV Box distributors.
  • Bulk supply for IPTV, OTT operators, and streaming service providers.
  • Cost-effective hardware solution for commercial digital signage, hotel TV systems, and retail media players

X96Q Smart TV Box Specifications

Category
Specification Details
Model
X96Q
OS
Android 10.0 / Updates (Depending on firmware version)
CPU
Allwinner H313 Quad Core ARM Cortex A53
GPU
Mali-G31 OpenGL ES 3.2
RAM Options
1GB / 2GB DDR3
ROM Options
8GB / 16GB eMMC
Video Resolution
4K @ 60fps, 1080p @ 60fps
Video Decoder
H.265 Main10@L5.1 up to 4K@60fps, VP9 Profile 2 up to 4K@30fps, H.264 BP/MP/HP@L4.2 up to 4K@30fps
Audio Format
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Wi-Fi
2.4GHz IEEE 802.11 b/g/n
Ethernet
RJ-45 Jack (10/100M LAN)
HD Output
HD 2.0a up to 4K Output
USB Ports
2 x USB 2.0 (Supports USB disk and USB HDD)
AV Port
480i/576i standard definition output
TF Card Slot
Supports Micro SD / TF card (Up to 64GB)
Power Supply
DC 5V/2A
Indicators
Power ON: Blue; Standby: Red
