ROCKCHIP TVBOX

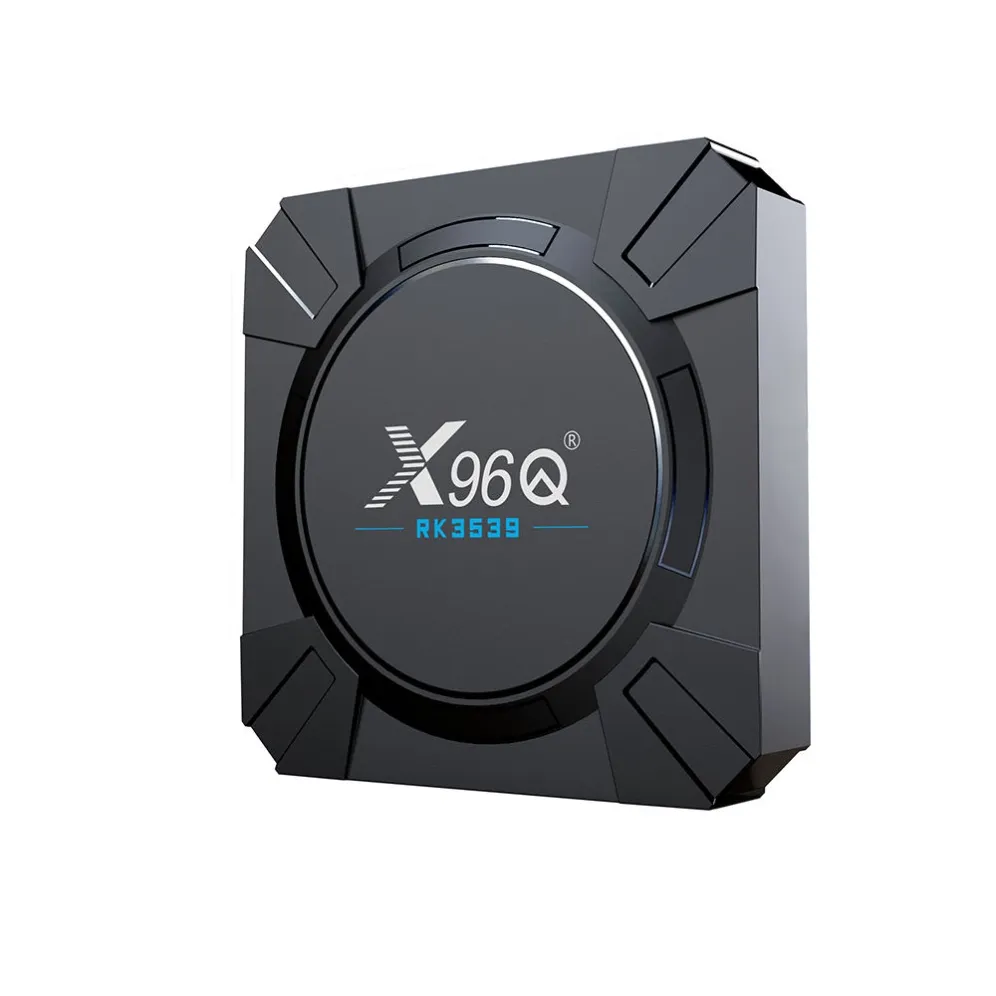

X96Q RK3539
New TV Box model: X96Q_RK3539 1.Chipset: RK3539 Quad-Core 64bit Cortex-A55 2.OS:Android 14.0 3. YouTube 4K certification, AV1 decoding 4.LAN 100M+Wifi6 2.4G&5G+Bluetooth: 5.X 5.BT Voice remote control, 6.RAM:2GB/4GB optional,ROM16GB/32GB optional

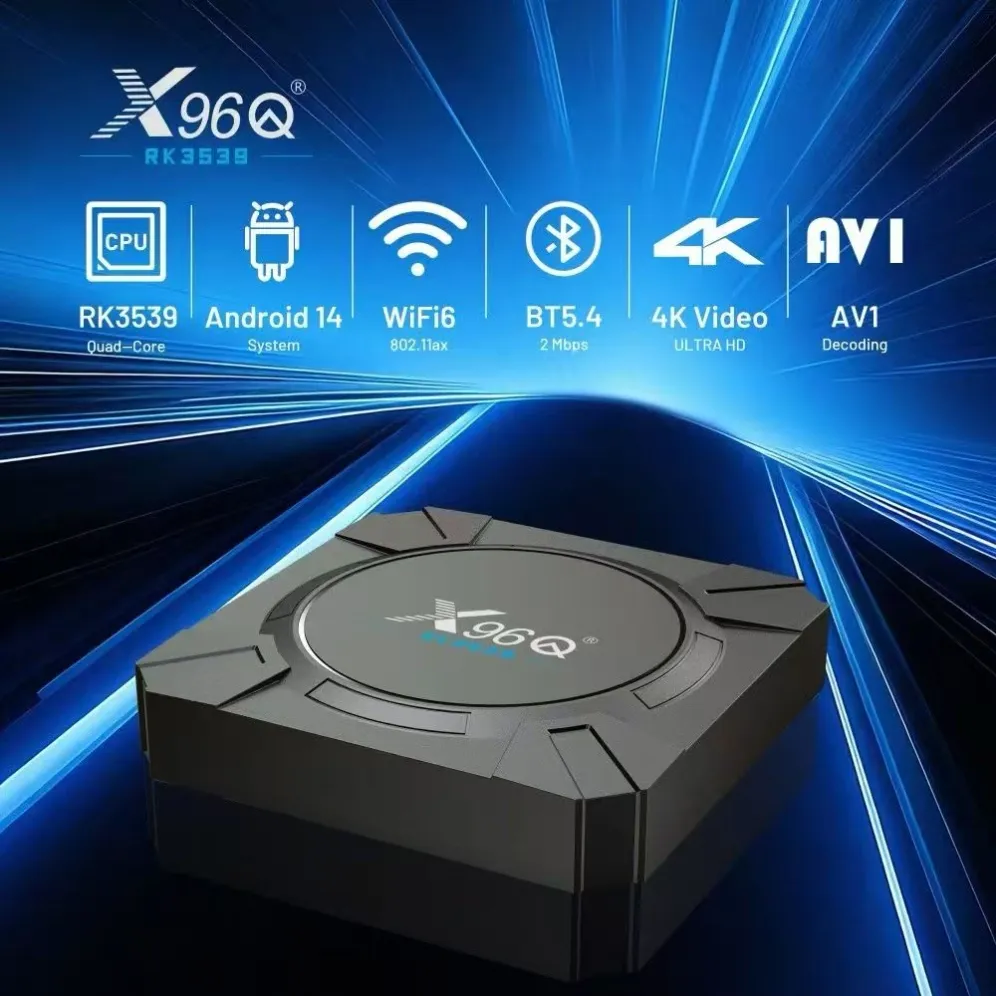

Newest Rockchip RK3539 Android TV Box YouTube Certified 4K Quad Core Cortex-A55 Mali-G310 AV1 Smart Streaming Media Player
Rockchip RK3539 Android 14 4K Streaming TV Box / TV Stick
Specifications
Category | Specifications |
SoC (Chipset) | Rockchip RK3539 (Quad-Core 64-bit ARM Cortex-A55, up to 1.9GHz) |
GPU | ARM Mali-G310 |
Operating System | Android 14.0 |
RAM | 2GB / 4GB LPDDR4 (Optional) |
Storage (eMMC) | 16GB / 32GB eMMC (Optional) |
Streaming Certification | YouTube Certified, Supports 4K Streaming |
Media & Video Decoding
- Video Codecs:
- AV1 MP-10@L5.1 up to 4Kx2K@60fps
- H.265 / HEVC Main-10@L5.1 up to 4Kx2K@60fps
- VP9 Profile-2 up to 4Kx2K@60fps
- H.264 / AVC HP@L5.1 up to 4Kx2K@30fps
- HDR Support: HDR10, HLG
- Audio Codecs: MP3, AAC, WMA, RM, FLAC, Ogg, and programmable with 7.1 / 5.1 down-mixing
Network & Wireless Connectivity
- Wi-Fi: Wi-Fi 6 Dual-Band (2.4GHz / 5.0GHz), IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: Bluetooth 5.4 / 5.0
- Ethernet (LAN): 100M Ethernet RJ45 (for TV Box model)

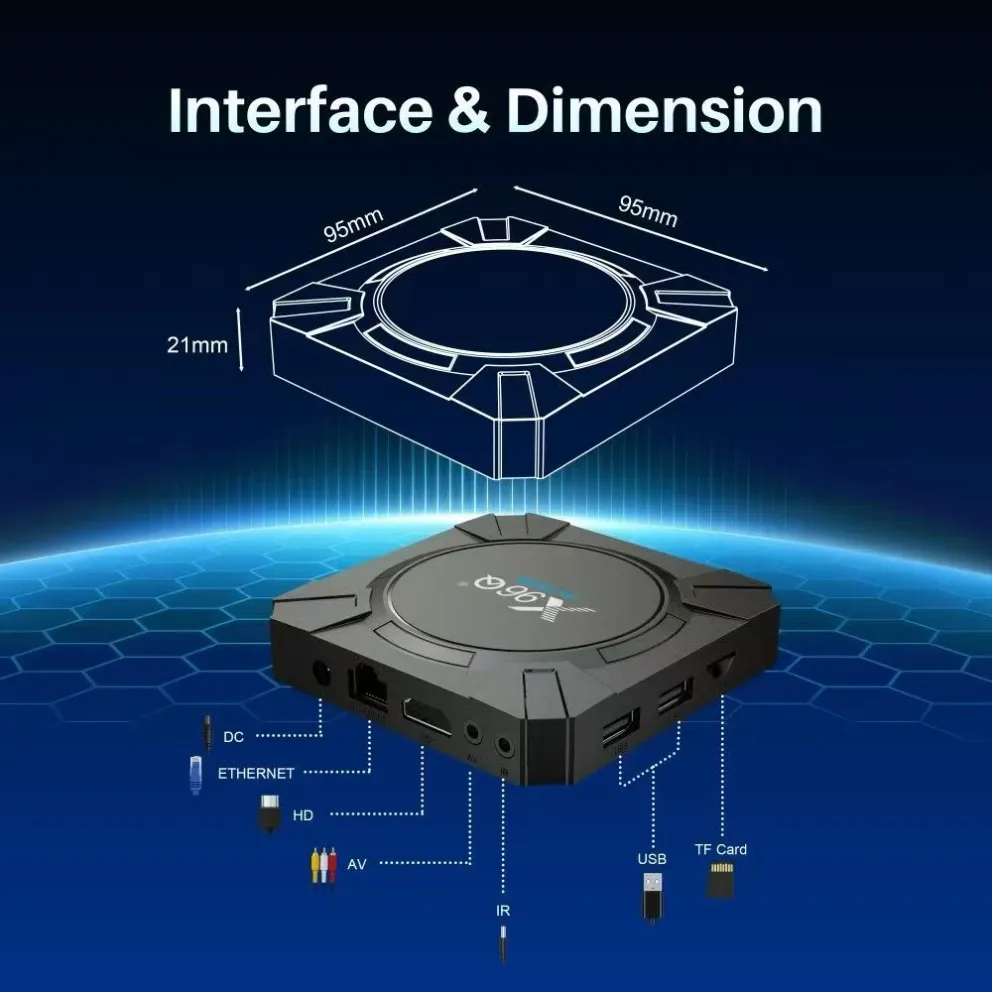

I/O Interfaces & Ports
- HDMI Output: HDMI 2.1a with HDCP 2.2, supporting up to 4K@60fps output
- USB Ports: 1x USB 3.0, 1x USB 2.0
- Power Supply: DC 5V/2A (Type-C or DC Jack)
- TF Card Slot: MicroSD expansion up to 128GB
Package & Accessories
- In the Box:
- 1x RK3539 Media Player
- 1x Bluetooth Voice Remote Control (with YouTube Hotkey)
- 1x HDMI Cable
- 1x Power Adapter
- 1x User Manual
