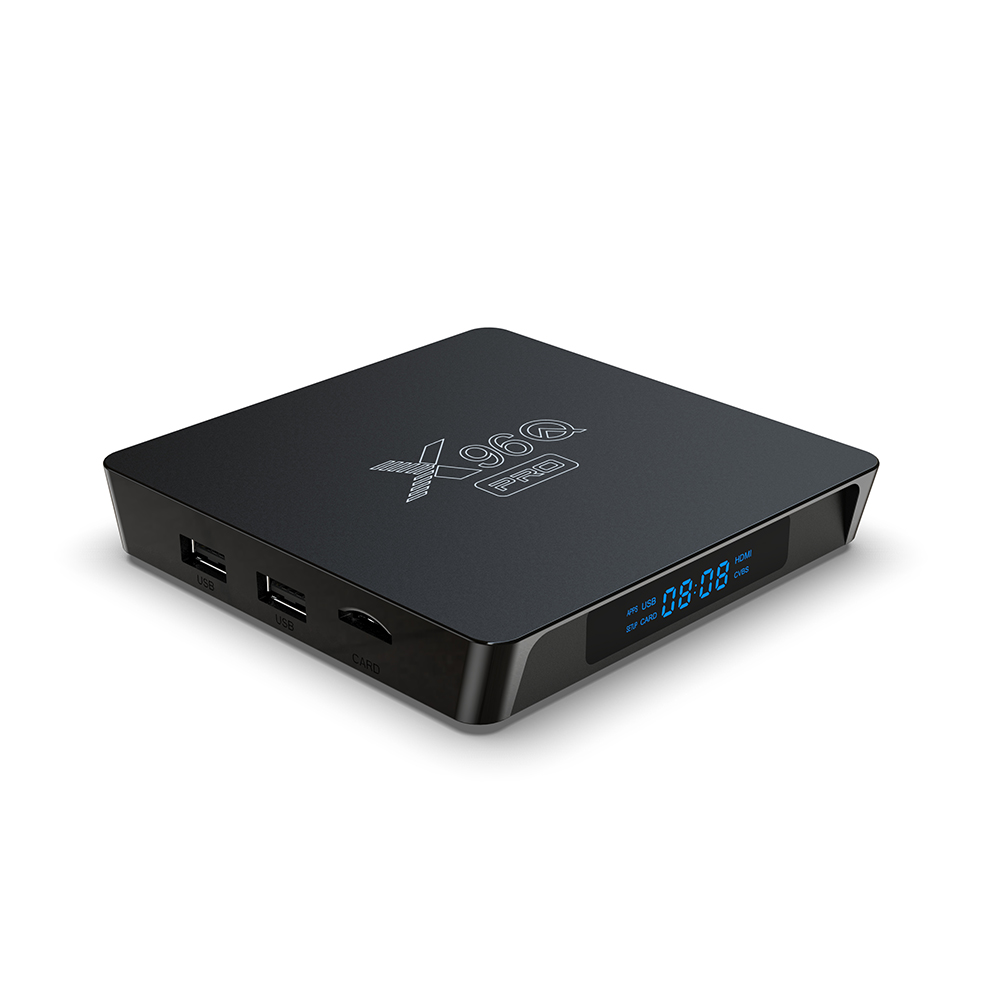

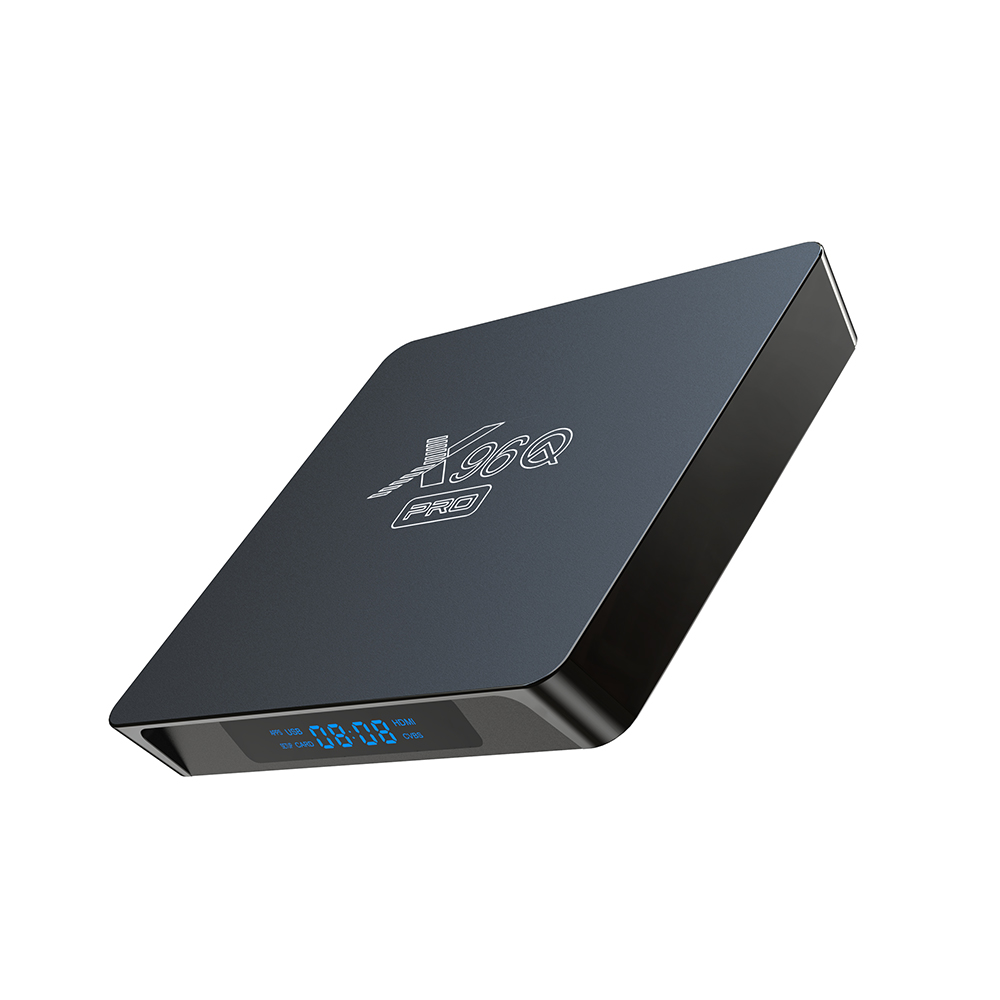

X96Q PRO Android TV Box – Allwinner H616, Android 10.0, 4K, Dual WiFi

The X96Q PRO is a 4K Android TV box powered by the Allwinner H616 Quad-Core Cortex-A53 processor and running Android 10.0. It supports 4K at 60fps, HDR processing, Dual-Band Wi-Fi, 100M Ethernet and HD 2.0a output, with 2 USB 2.0 ports, a Micro SD card slot and AV output. It offers 1GB and 2GB RAM options and 8GB and 16GB storage options.

Overview

The X96Q PRO Android TV Box is an upgraded, high-performance smart set-top box engineered specifically to meet the high demands of the Middle East entertainment market, particularly in Saudi Arabia (KSA). Powered by the advanced Allwinner H616 Quad-Core processor and equipped with 2.4G/5G Dual-Band Wi-Fi, the X96Q PRO delivers lightning-fast network speeds, stable streaming, and premium 4K Ultra HD @60fps decoding capabilities. It stands out as the top-selling hardware solution for wholesale distributors, retail brands, and IPTV/OTT service providers.

Key Features

  • Upgraded Allwinner H616 Chipset: Driven by the H616 Quad-Core ARM Cortex-A53 CPU and Mali-G31 MP2 GPU, offering superior processing speed, optimized power management, and immersive graphics.
  • Blazing-Fast 2.4G & 5G Dual Wi-Fi: Features built-in dual-band Wi-Fi (802.11 a/b/g/n/ac) to ensure stable, buffer-free live streaming, high-speed downloads, and seamless wireless connectivity in crowded network environments.
  • Stunning 4K @60fps Decoding: Supports hardware video decoding for H.265 Main10@L5.1 up to 4K@60fps, delivering vivid contrast, sharp imagery, and HDR visual performance.
  • Flexible B2B Configurations: Available in 1GB/8GB and 2GB/16GB eMMC storage options, providing perfect choices for budget-sensitive massive distribution or premium project deployment.
  • Saudi Standard Compliant: Available with UK standard power plugs (Type G) and certified configurations tailored for the Saudi Arabian electrical and telecommunications requirements.

Target Applications & Markets

  • IPTV & OTT Streaming Supply: Ideal hardware for global and Middle Eastern IPTV operators requiring reliable 5G Wi-Fi performance.
  • Wholesale Distribution: Bulk supply for consumer electronics importers, retail chains, and e-commerce sellers in Riyadh, Jeddah, Dammam, and across the GCC region.
  • OEM/ODM Customization: Supports custom boot logos, pre-installed applications, customized packaging boxes, and UI design tailored for bulk commercial orders.

X96Q PRO Smart TV Box Specifications

Category
Specification Details
Model
X96Q PRO
OS
Android 10.0 / 11.0 (Depending on current production batch)
CPU
Allwinner H616 Quad Core ARM Cortex A53
GPU
Mali-G31 MP2 (Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1)
RAM Options
1GB / 2GB DDR3
ROM Options
8GB / 16GB eMMC
Video Resolution
Up to 4K @ 60fps Ultra HD Output
Video Decoder
H.265 Main10@L5.1 up to 4K@60fps, VP9 Profile 2 up to 4K@60fps, H.264 BP/MP/HP@L4.2 up to 4K@30fps
Audio Format
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Wi-Fi (Dual Band)
2.4GHz + 5GHz Dual-Band Wi-Fi (IEEE 802.11 a/b/g/n/ac)

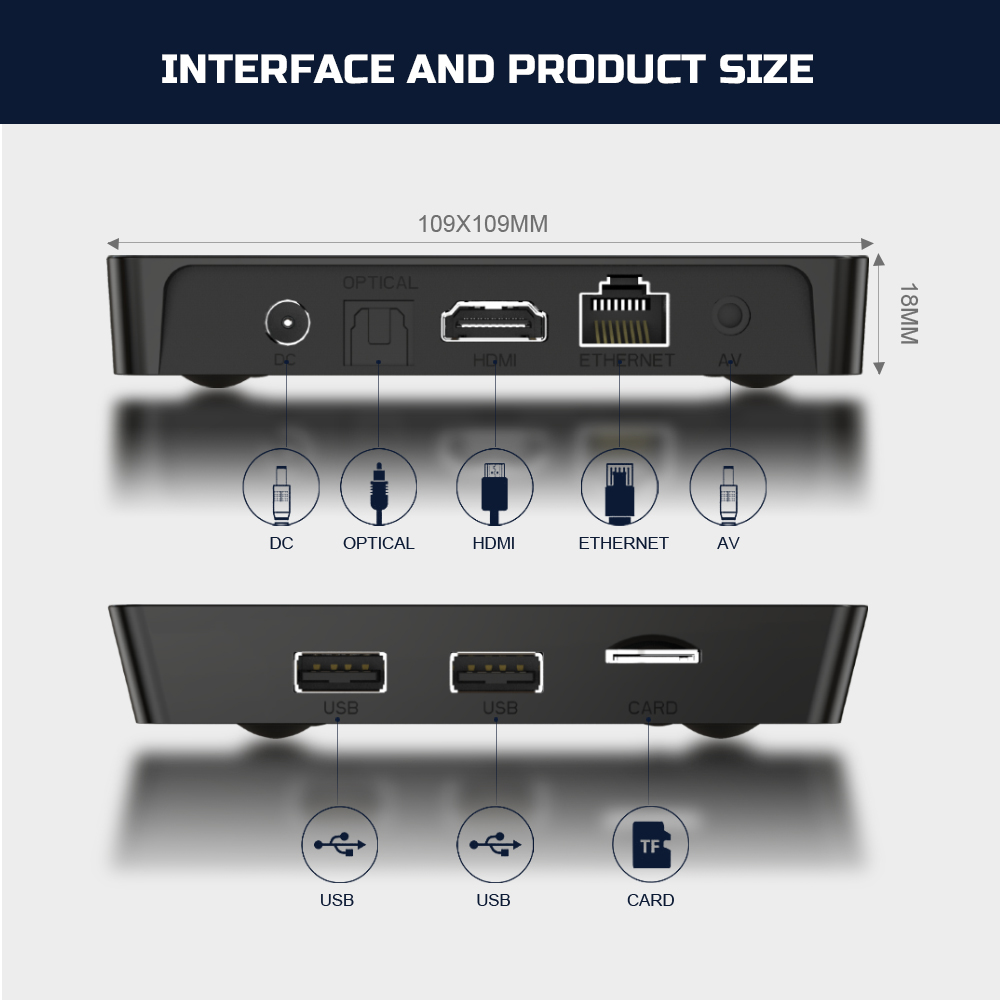

Ethernet
Standard RJ-45 Jack (10/100M LAN)
HD Output
HD 2.0a up to 4K @ 60fps with HDR
USB Ports
2 x USB 2.0 (Supports USB flash drives and external HDDs)
AV Port
480i/576i standard definition output for legacy TVs
TF Card Slot
Supports Micro SD / TF card (Up to 64GB)
Power Supply
DC 5V/2A
Indicators
Power ON: Blue; Standby: Red
