HISILICON TVBOX

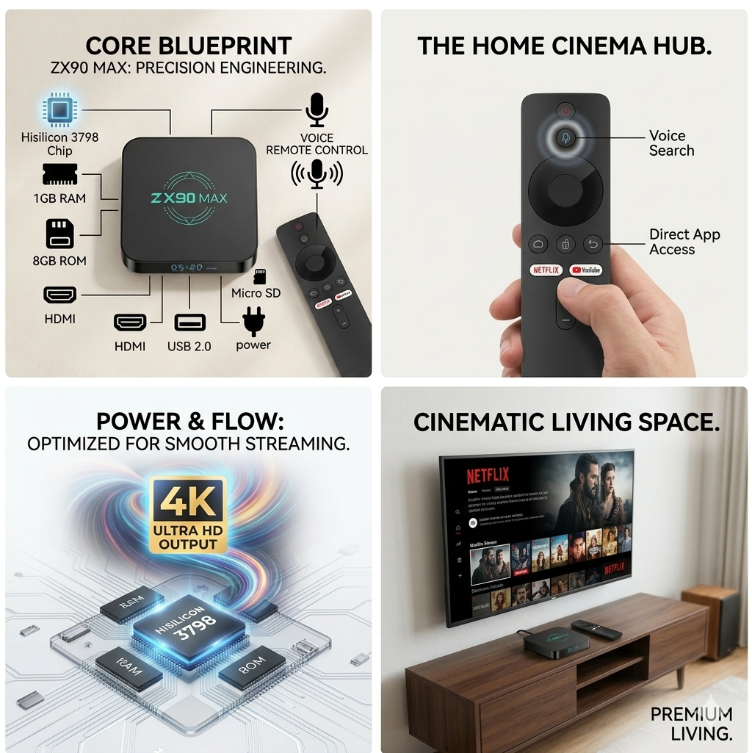

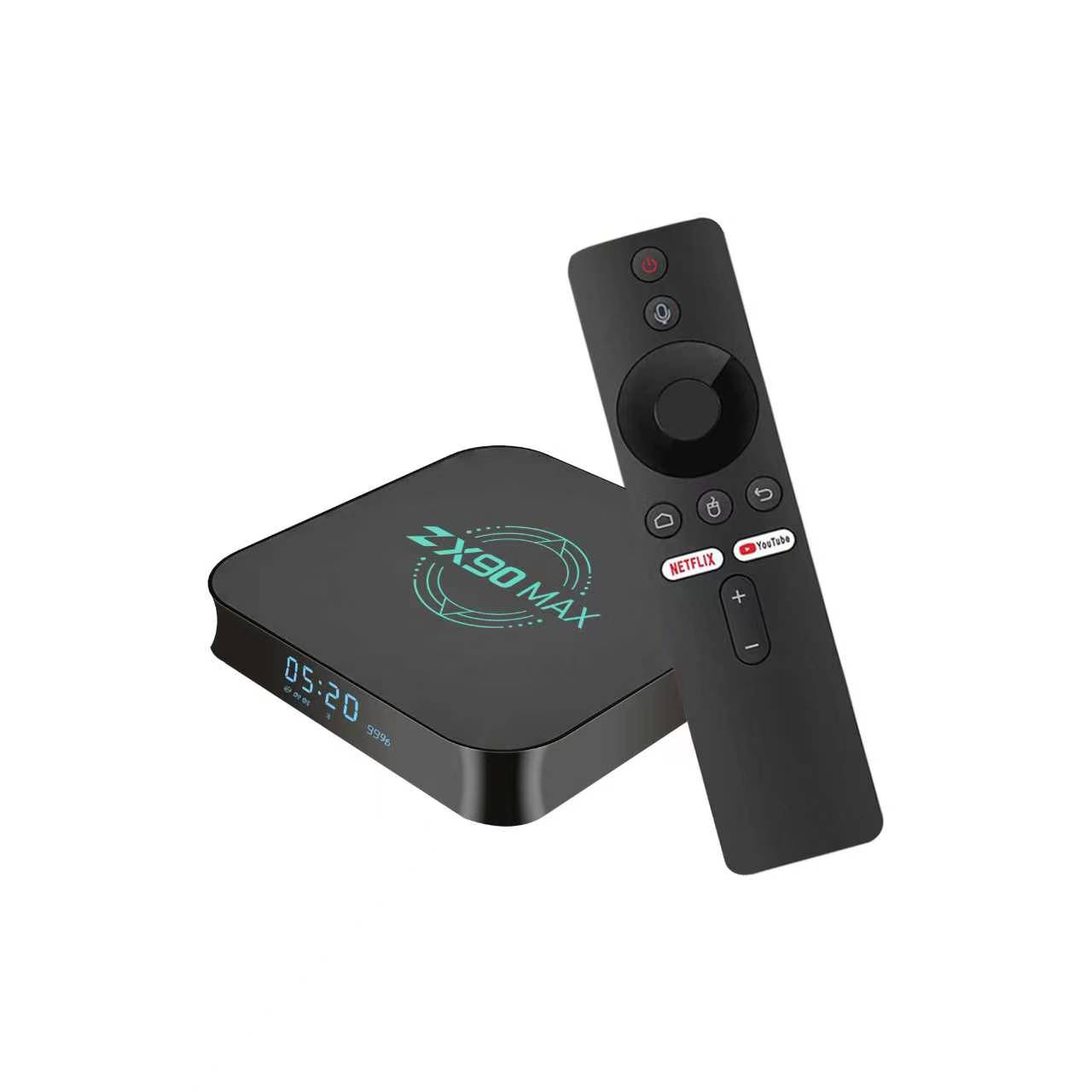

ZX90MAX 4K Android TV Box – HiSilicon Hi3798, Quad-Core A53, 1GB+8GB, Dual-Band WiFi, Voice Remote

The ZX90MAX is a 4K Android 9.0 smart TV box powered by the HiSilicon Hi3798 quad-core Cortex-A53 chipset with ARM Mali-400 graphics. It plays 4K 10-bit H.265, H.264 and VP9 video up to 4096x2304, with hardware 3D acceleration and HD 2.0 output with HDCP 1.4. 1GB DDR3 memory, 8GB eMMC storage, dual-band WiFi (2.4G/5.8G), 10/100M Ethernet, two USB 2.0 ports and a 32GB TF slot support Netflix, Hulu, Flixster, YouTube, local HDD and U Disk playback, DLNA, WiFi hotspot and voice remote control.

ZX90MAX 4K Android 9.0 Smart TV Box - HiSilicon Hi3798 Quad-Core Cortex-A53, 1GB DDR3 + 8GB eMMC, Dual-Band WiFi, Voice Remote Control



Model No.
ZX90MAX
CPU
HI 3798(313S-2) Quad core Cortex A53, High cost performance 4K OTT Box solution
GPU
ARM Mali-400 GPU
HD Output
Including an HD 2.0 port for 4K YUV420@30Hz with HDCP 1.4
Support 4K 10-bit H.265/H.264/VP9 video playback and display
Memory
1GB DDR3
Flash
8GB Emmc
WiFi
802.11 b/g/n 2.4G/5.8G
USB HOST
2*USB2.0
Wired network
Ethernet GMAC 10/100M Ethernet controller
Support 10/100Mbps data transfer rate and RGMII interface
Extension
SD/TF 32G
IR
Infra Remote control
Power Supply
DC input 5V/2A
Software

OS
Android 9.0

3D
Hardware 3D graphics acceleration
Video decoding
4K VP9 Video decoder, 4K 10-bits H.265/H.264 video decoder
1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8)
Support conversion from BT.2020 to Rec.709/Rec.601
Video post processor: de-interlace
Support H.263/H.264 2160P@ 24fps
Support VC-1 ,MPEG - 1 1080p @ 60fps
Support MPEG- 2 2160P @ 24fps
Support MPEG-4 1080P @ 60fps
Support AVS 1080p @ 60fps
Support MVC 2160P @ 24fps
Support WMV, 3GP, MKV, ASF, 3G2, M4V, MJPEG, RV8, RV9, RV10 1080P@60fps
Support HEVC decoder
Support Main/Main10 HEVC/H.265 decoder, 4K @ 60FPS
Support 4096x2304 resolution
Support HD 720P-2160P 3D HD( 2160P, 3840 * 2160 ), 4K+2 K

Video Decoder format
H.264,H.265,VP8,MVC(1080P)
Video format
Supports DIVX/REAL8 / 9 / 10, RV, RM, RMVB, PMP, FLV, MP4, M4V, VOB, VP6, VP8 2160P @ 24fps
Audio format
Supports MP1, MP2, MP3, WMA, OGG, AAC, M4A , FLAC, APE, AMR, RA, WAV, etc
Picture format
Supports JPG, JPEG, BMP, GIF, PNG, JFIF etc Resolution 8192x8192
HDD file system
FAT16 / FAT32 / NTFS
Support Subtitle
SRT, SMI, SUB, SSA, IDX+USB
Kodi
Support
DRM
Support Widevine Level 1, DRM PlayReady, Verimatrix, built in Trustzone,
HDCP 1.4
Support language
Chinese, English, German, Japanese, Korean etc. multilateral languages
Applications

Online
Browse all video websites, support Netflix, Hulu, Flixster, YouTube etc
Apps
Apps download freely from Google Play, Amazon Appstore, etc.
Local Media playback
support HDD, U Disk
Talk online
Facebook, Twitter, QQ, etc.
Others
Support WiFi hotspot, could be as a wireless router

Support DLNA, Google TV Remote, LAN, 3D Movie, Email, Office Suite etc
