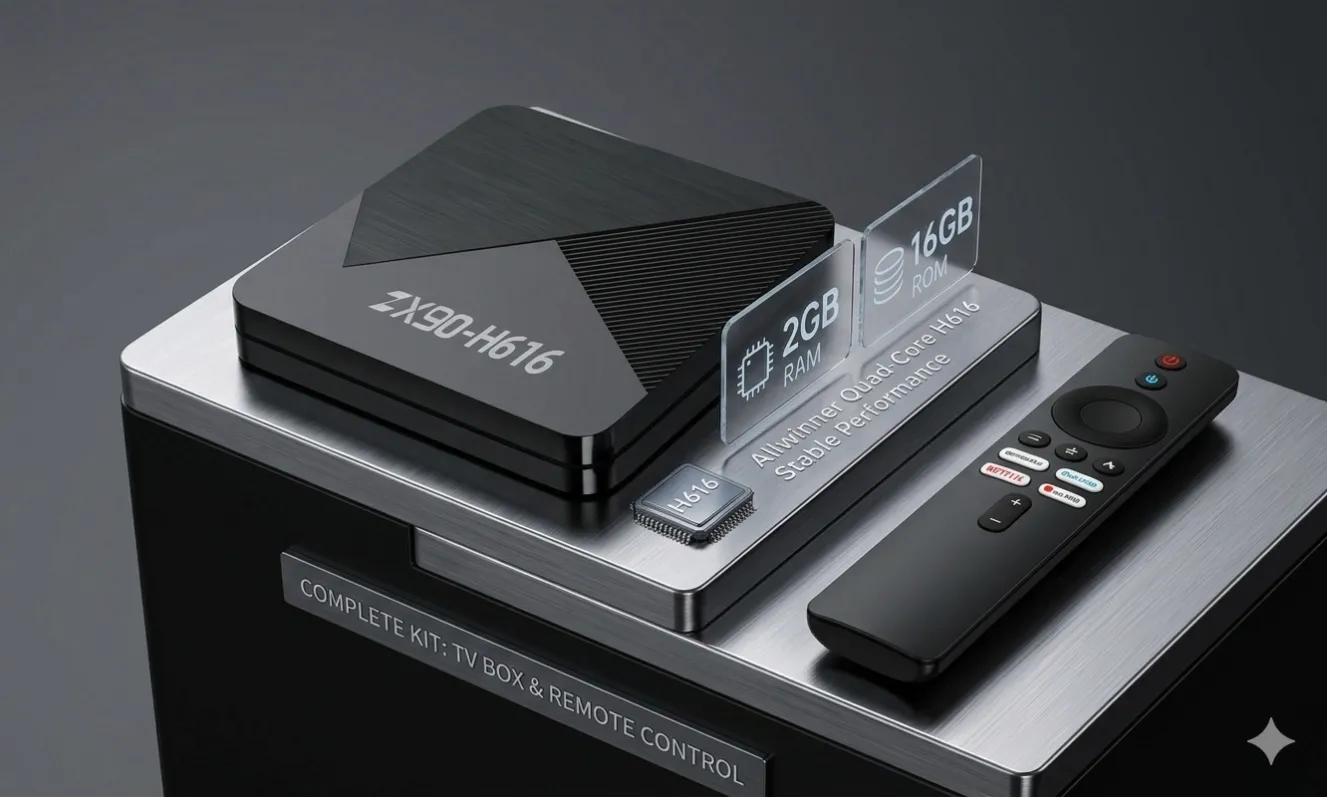

ZX90MAX-H616 4K Android 10 TV Box – Allwinner H616, Quad-Core A53, 2GB+16GB, 5G WiFi, BT 5.0
The ZX90MAX-H616 is a cost-effective 4K Android 10.0 TV box powered by the Allwinner H616 quad-core ARM A53 chipset with G31 OpenGL 3.2 graphics. Built for smooth live sports and 4K streaming, it has 2GB DDR3 RAM, 16GB eMMC storage, 802.11 b/g/n/ac WiFi, BT 5.0, USB 3.0/2.0 ports, a 64GB TF slot and 10/100M Ethernet. It runs Netflix, Hulu, Flixster and YouTube, plays local media from HDD, U Disk or TF card, and decodes 4K video up to 4Kx2K 60fps for wholesalers and distributors.
- Smooth 4K Streaming: Powered by Allwinner H616 for lag-free live sports.
- 2GB RAM + 16GB ROM: Optimized memory to run all global sports broadcasting apps smoothly.
- Unbeatable Cost-Efficiency: Highly competitive price for quick retail turnover and maximum profit.
CPU | Allwinner H616 Quad Core ARM A53 | |||||||
GPU | G31 OpenGL 3.2 | |||||||
Memory | DDR3:1GB/2GB | |||||||
Flash | eMMC:8GB/16GB | |||||||
WiFi | IEEE 802.11 b/g/n/ac 5G WIFI, BT 5.0 | |||||||
Module | Plastic : Black Color | |||||||
I/O | 1*HD | 4K*2K UHD Output, HD 2.0A | ||||||
1*AV OUT | 480i/576i standard definition output | |||||||
2*USB | 1 * USB 3.0 ; 1*USB 2.0 | |||||||
1*IR Receiver | Remote Receiver Connect | |||||||
1*RJ45 | Ethernet Interface;Support 10/100M | |||||||
1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
Power | DC 5V/2A; | |||||||
OS | Android 10.0 | |||||||
Video | Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4Kx2K 60fps+1x1080P 60fps
Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
Video Decoding
- VP9 Profile 2 up to 4Kx2K 60fps
- H.265 Main10@L5.1 up to 4K @ 60fps
- AVS2-P2 Profile up to 4Kx2K 60fps
- H.264 BP/MP/HP L4.2 up to 4Kx2K 30fps
- H.263 BP up to 1080P 60fps
- MPEG-4 SP/ASP L5 up to 1080P 60fps (ISO-14496)
- MPEG-2 MP/HL up to 1080P 60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P 60fps (ISO-11172)
- Xvid up to 1080P 60fps
- Sorenson Spark up to 1080P 60fps
- VP8 up to 1080P 60fps
- AVS/AVS+ JiZhun Profile up to 1080P 60fps
- WMV9/VC1 SP/MP/AP up to 1080P 60fps
- JPEG HFIF file format up to 45MPPS
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |||||||
Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Audio Codec
-Two audiiodigital-to-analog(DAC) channels
-Support 16-bit and 20-bit sample rate
-8kHz to 192kHz DAC sample rate
-95+/-2dB SNR A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms
-One128*24-bits FIFO for DAC data transmit
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM | |||||||
Image | HD JPEG,BMP,GIF,PNG,TIF | |||||||
Language | English French German Spanish Italian etc multilateral languages | |||||||
Applications | ||||||||
Online | Browse all video websites, support Netflix, Hulu, Flixster, YouTube, etc. | |||||||
Apps | Apps download freely from Google Play, Amazon Appstore, etc. | |||||||
Local Media playback | Support HDD, U Disk, TF Card. | |||||||
Talk online | Facebook, Twitter, QQ, etc. | |||||||
